Audio video HDMI /DVI extender optical fiber transmitter

FOB Reference Price:Get Latest Price
$1.00 - $246.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Pway
Model Number:
PW-THF123H
Type:
HDMI Fiber Optic / Fiber optic converter
Video Resolution:
4Kx2K@30Hz, 3D, 1920*1200@60Hz
Transmission Distance:
Single-mode fiber: 2-10km; Multi- mode fiber: < 300M
HDMI Version:
HDMI 1.4
HDCP Version:
HDCP 1.2
RS232 Interface:
Industrial Terminal
Optical interface:
SFP model LC connector
Optical fiber Wavelength:
Single-mode 1310nm/ 1550nm
HDMI Cable Range:
<5M( Resolution: 1920*1200@60Hz)
Keyword:
hdmi multi mode fibre optic extender
Supply Ability
Supply Ability:
500 Set/Sets per Week hdmi multi mode fibre optic extender
Packaging & Delivery
Packaging Details
our hdmi multi mode fibre optic extender 's package:
Weight: 1.8 kg
Package: Gift box30*25*11cm
Port
Shenzhen



Newest 300M hdmi OM3 multi mode fibre optic extender with RS232 signal transmission up to 1080P@60Hz

Product Description

Descriptions:

The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, EDID copy/pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

  • Transmits HDMI video signals up to 2km-10km over a pair fiber optic cable;
  • Support video resolution up to 4Kx2K@30Hz, 3D; 1080P
  • Support copy EDID copy/pass-thru, can match many kind display device;
  • Support RS232 undirectional transmission
  • Compliance with HMDI 1.4B standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play;

Specifications:

Parameter

Description

Video

Standards

HDMI 1.4

Maximum pixel clock

225MHz

Maximum data rate

6.75Gbps

Resolution range

Up to 4Kx2K@30Hz, 3D, 1920*1200@60Hz

Connector

HDMI-A Interface

HDMI Cable Range

<5M( Resolution: 1920*1200@60Hz)

Impedance

100Ω

RS232

Interface

Industrial Terminal

Signal Direction

Unidirectional

Baud Rate

Self-adaptive,Max: 115200bps

Data Bits

8

Optical fiber

Interface

SFP model – LC connector

Fiber type

Single-mode

Wavelength

Single-mode 1310nm/ 1550nm

Interface bandwidth

10Gbps

Transmission distance

Single-mode fiber: standard 2km;maximum 10km

Multi- mode fiber: < 300M

Other

Power supply

The power adapter: DC 12V/1A

Power dissipation

MAX 5W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

94.5*73*26mm

The warranty

1 year free warranty

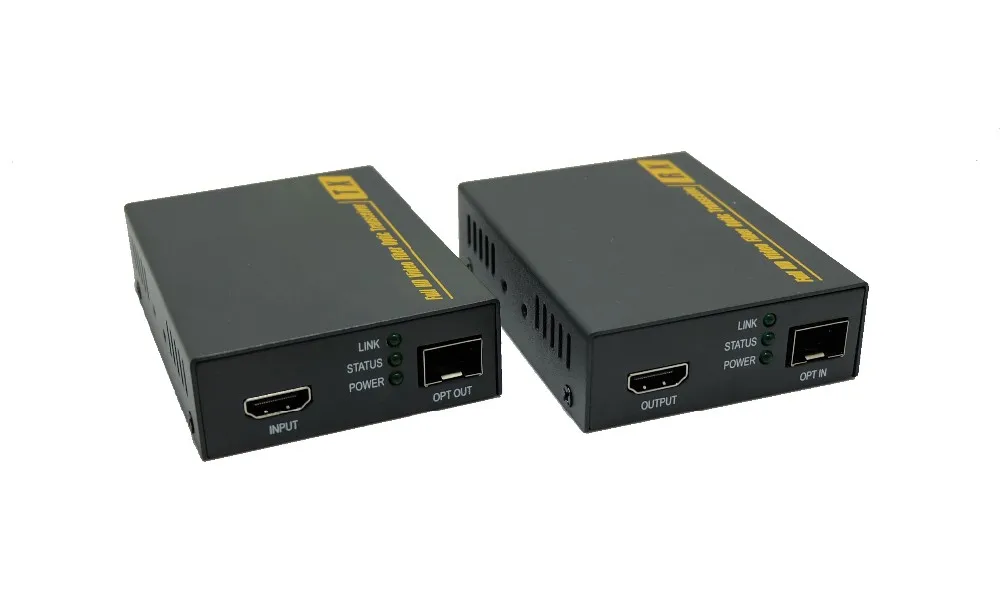

Product Pictures:

Instructions for use

The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Panel Descriptions:



Installation:

  • Connect the provided DC power supplies to the power socket of the transmitter and the receiver,
  • Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
  • Adopt LC connector of fiber cable to connect from Transmitter STF fiber port to Receiver SFP fiber port
  • Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

Application Diagram:
