PWAY Non compression HD Extender HD 1080P over cat 5e/6 cable with POC

FOB Reference Price:Get Latest Price
  • 1 - 99 Sets
    $47.00
  • 100 - 199 Sets
    $45.00
  • >=200 Sets
    $40.00
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
PWAY
Model Number:
PW-HT127HKM
Place of Origin:
Guangdong, China
Color:
Black
HDMI version:
HDMI1.3
Supports:
HDCP1.2
Transmission Distance:
120M
Resolution:
up to 1920x1080@60Hz
Transmission signal:
uncompression
Interface:
RJ45
Power supply:
DC 12V
Operating Temperature/Humidity:
-5℃ ~ +70℃/5% ~ 90%
The warranty:
1 year free warranty
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Packaging Details:
Packaging Details:
Weight: 0.78 kg
Package size: 100*60*25 mm
Package: Gift box
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

Description

The HT127 HDMI extender is non-compressed transmit HDMI video source up to 120m over cat5e/6 , highest resolution is 1080p@60hz and supports Keyboard & Mouse remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.




Features

Non-compressed and lossless transmits HDMI video and audio signals up to 120m over a single CAT5e/6 cable.

No delay and smooth Keyboard/Mouse remote control

Adjust the specifications automatically for different cable lengths 1-120m(394ft) to achieve the best display, without any manual configuration.

Support POC function , power on ethernet cable , only need connect 1 power adapter on TX/RX

Support video resolution up to 1920*1080@60Hz.

Compliance with HDMI 1.3 and HDCP 1.2 standard.

High compatibility, can auto-match source and display device.

Built-in automatic adjustment system, make the image smooth, clear and stable.

Built-in ESD protection system.

Simple to install, plug and playPerfect for All kinds of projects.

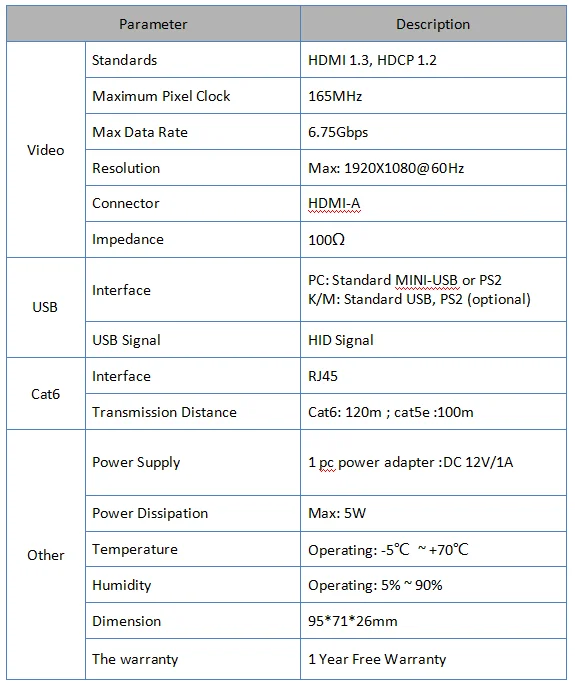

Specification



Panel



Port name

Description

HDMI in/out

HDMI signal input/output

CAT6

RJ45 port connect cat5e/6.

IR IN

Connect the big IR cable

IR OUT

Connect the small IR cable

DC 12V

Power adapter socket

LED indicator

Description

PWR

System power indicator

STA

Video signal indicator.



Package list

 HDMI transmitter ……………………….…1 pc

 HDMI receiver ………………………………1 pc

Power adapter ……………………………….1 pc

 Mini pc to USB2.0 cable.............................1 pc

User manual ………………………………….1 pc



Diagram



Installation

Connect the HDMI input source (such as HD-DVD,PS3,STB etc. ) to transmitter.

Connect a CAT5E/6 cable from CAT6 port of transmitter to CAT6 port of receiver.

Connect the HDMI sink(such as HD-LCD,HD-DLP)to receiver.

Connect the transmitter CAT6 port to the receiver CAT6 port using a single            CAT5E/6 cable.

Connect the PC into HDMI transmitter by mini USB cable, Connect the keyboard  and mouse into HDMI receiver .

Power on Transmitter or Receiver.
