HDMI Splitter 1x4 1 input 4 output Full HD 1080P 3D Support IR Control With Power Supply

FOB Reference Price:Get Latest Price
US $1-120 / Sets | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
PWAY
Model Number:
HTS0104PIR
Place of Origin:
Guangdong, China (Mainland)
Color:
Black
Resolution:
1920*1080@60Hz
interface:
HDMI -A
power:
DC 5-15V
Size:
150*71*23mm
impedance:
100Ω
standard:
HDMI 1.3 ;HDCP 1.2
Pixel broadband:
165MHz, all figures
Operating Temperature/Humidity::
-5℃ ~ +70℃/5% ~ 90%
warranty:
1 year free warranty
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Weight: 0.78 kg
Package size: 100*60*25 mm
Package: Gift box
Port
Shenzhen
Lead Time :
2-3 days for sample,15-25 days for mass product

Description

HDMI Distribution Extender is a high-definition video source is divided into four Road through a single cable to transmit high-definition video signals up to 60 meters, while supporting EDID learning capabilities, able to adapt to a variety of complex applications. The device has excellent image processing and transmission capabilities, the distribution of the signal more smooth and stable, is a reliable, high performance, efficient HDMI signal extension.

Features

 All the way high-definition video source is divided into four single-wire transmission of high-definition video signals up to 60 meters;
 HD video signal resolution up to 1920 * 1080 @ 60Hz;
 Compatible with HDMI 1.3 standard
 Support POC unilateral power supply
 Support EDID learning function, able to adapt to a variety of complex application environment;
 HDCP 1.2 compliant - High bandwidth digital content protection technology
 can automatically identify and configure various display modes;
 Built-in automatic balance system, the picture is smooth, clear and stable;
Built-in ESD electrostatic protection circuit, all-round protection system security
 easy to install, plug and play, without setting;

Technical Parameters

Parameter name

detailed description

Video

Support Protocol

 HDMI 1.3 ;HDCP 1.2

Pixel bandwidth

165MHz,all digital

The total bandwidth of the interface

6.75Gbps

Maximum support resolution

1920*1080@60Hz

Interface

HDMI -A interface

Impedance

100Ω

The maximum recommended DVI input / output distance

less than 5 meters at 1920X1080 @ 60Hz

interface

RJ45

The recommended maximum transmission distance

using Category 6 cable up to 60 meters

Other

power supply adapter

DC 5-15V

maximum power consumption

MAX 6W

 Operating temperature

-5℃ ~ +70℃

Operating Humidity

5% ~ 90%

Dimensions

150*71*23mm

Warranty

1 year free warranty, lifetime maintenance

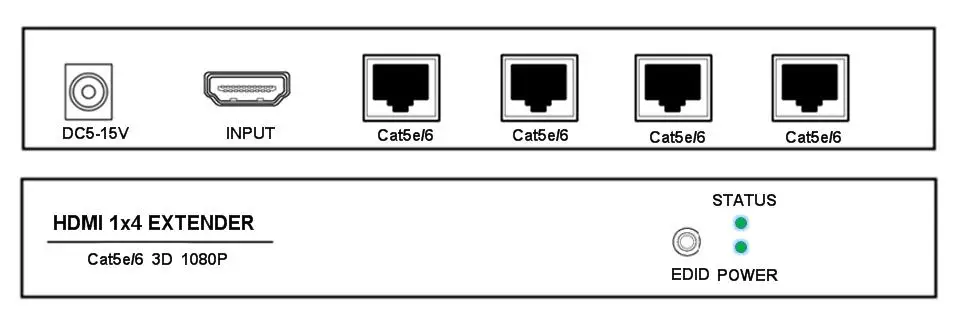

Interface


Port Name

Function Description

INPUT

HDMI signal input

DC5-15V

power adapter socket input

EQ

EQ read key (the first use, replace the display, network cable need to reset)

Cat5e/6

Network Interface

EDID

TV access transmitter INPUT, long press the EDID button for 3 seconds, the status indicator flashes, copy EDID completed.

Signal Indicator Name

Function Description

PWR(POWER)

Power indicator (light: normal power, off: no power input)

STA(STATUS)

Video source signal indicator (On: locked, off: unlocked)

Equipment List

HDMI 1 * 4 distributor host ................................1pcs

HDMI Extender receiver host.............................. 0-4 pcs (optional)
Power adapter ............................................................1pcs

a manual.........................................................................1pcs

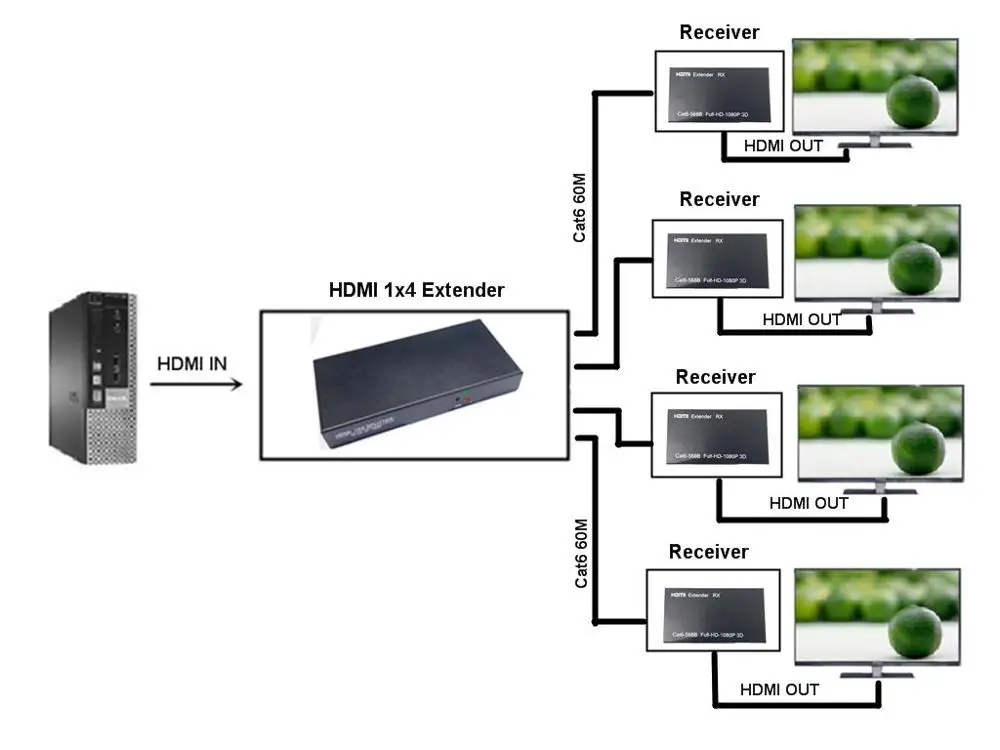

Application diagram
