HDMI Wireless Extender up to 300m Transmitter and Receiver Supports Full HD 1080P with IR(PW-DT216W-C)

FOB Reference Price:Get Latest Price
US $1-300 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
PWAY
Model Number:
PW-DT216W-C
Place of Origin:
Guangdong, China (Mainland)
Type:
Wireless Extender
Resolution:
Max: 1920X1080p@60Hz
Compressed format:
H.264
Transmission distance:
300m
Color:
Black
Power:
DC 5V
Standard:
HDMI 1.3; HDCP 1.2
Size:
115*97*18mm
Temperature/Humidity:
Operating:-5℃ ~ +70℃/Operating:5% ~ 90%
Warranty:
1 year free warranty
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Packaging & Delivery
Packaging Details:
Package for wireless hdmi transmitter receiver kit
Dimension (L * W * H):94.5*71*26mm
Gross weight:0.9kg
Delivery Detail:
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 8 To be negotiated
Product name 300M Wireless HDMI extender
Model number PW-DT216W-C
Keyword 300M Wireless HDMI extender
Mobile and wechat008613534298863





HDMI Wireless Extender up to 300m Transmitter and Receiver Supports Full HD 1080P with IR(PW-DT216W-C)



Description

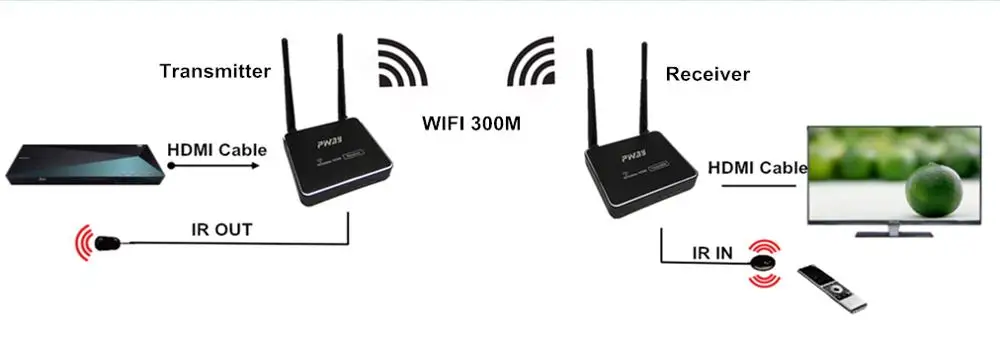

HDMI extender with a standard Ethernet TCP/IP protocol, through wireless WIFI signal transmission HD audio and video signal, at the same time, with infrared extensions to make remote control more convenient.The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.

Features

  • HDMI video and audio transmission via wireless WIFI, up to 300 meters;
  • HD video signal resolution up to 1920 * 1080 @ 60 Hz;
  • HDMI 1.3 compatible
  • Special format is used to compress and decompress video, effectively improve the transfer efficiency, to ensure that the playback fluency;
  • In accordance with standard 1.2 HDCP, high-bandwidth digital content protection technology;
  • Support external remote infrared extension, easy to operate the remote device;
  • Able to automatically identify and configure a variety of display mode;
  • Built-in automatic balance system, the picture is fluent, clear and stable;
  • The built-in ESD electrostatic protection circuit, comprehensive security protection system;
  • Simple and convenient installation, plug and play, do not need to set up.

Specifications

Parameter

Description

Video

Standards

HDMI 1.3; HDCP 1.2

Compressed format

H.264

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

Max: 1920X1080p@60Hz

Connector

HDMI-A

Impedance

100Ω

Recommend HDMI maximum input/output range

Less than 5 meters, when 1920 x1080p @ 60 Hz

IR

Interface

3.5mm Stereo audio socket

Signal direction

Unidirectional

Signal type

Digital

IR frequency

20-60kHz

    WIFI

Radio Frequency power

13dbm

Wireless standards

802.11ac

signal direction

Unidirectional

Radio frequency

5.8GHz

Transmission distance

300M

Other

Power

Adapter:DC 5V

Power dissipation

MAX 6W

Temperature

Operating:-5 ~ +70

Humidity

Operating:5% ~ 90%

Size

115*97*18mm

Warranty

1 year free warranty

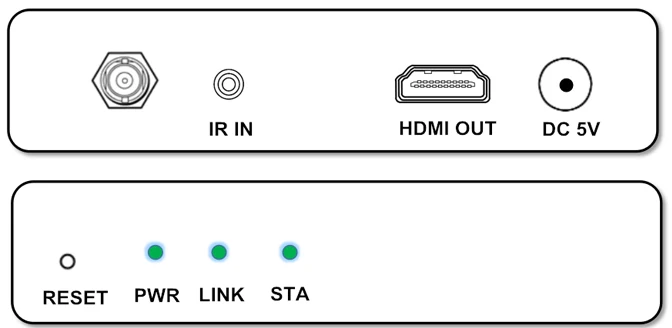

Panel

Transmitter:


 Receiver:




Port name

Description

HDMI IN / OUT

HDMI signal input/output

IR IN / OUT

IR signal input/output;TX/RX matching connectors

DC 5V

Power adapter socket

RESET

Reset button/ pairing key

LED indicator

Description

LINK

Connect light

STA

Video signal connection indicator

PWR

System power indicator




Package list

  • HDMI transmitter                1 pcs
  • HDMI receiver                    1 pcs
  • Power adapter                    2 pcs
  • IR TX/RX terminal               1 set
  • User manual                       1 pcs



FAQ



WHY DO YOU WANT TO CHOOSE OUR PRODUCT?

1.We are manufacturer specialize in producing HDMI,DVI,VGA,S-VIDEO,AV transmitter and receiver,

converter series products.

2.Quality is our culture. Pwaytek people always attached great importance to quality controlling  from start

to finish.

3.We think our product will give an edge over your conpetitors.

4.If we are honor to become your supplier in China, you will enjoy the best after-sales service.

5.We can provide good service for many large company,such as   Goldman Sachs.

Where is your factory ? Can I have a visit?

Add:5/Floor,Mantong Building,Dafu Road ,Aobei Community ,Guanlan Street,Longhua District,Shenzhen,Guangdong Province, China

, SHEN ZHEN SHI PIN WEI TECHNOLOGY LIMITED



Can I buy samples from your company?

We can provide samples .Contact me to talk about the details please.



How about the payment terms?

We accept paypal ,T/T, Western Union......
