SDI TO HDMI Converter SDI/HD-SDI/3G-SDI Adapter Support 1080P for Camera Home

FOB Reference Price:Get Latest Price
US $15-30 / Sets | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
PWAY
Model Number:
PW-CSDI2H -L
Place of Origin:
Guangdong, China (Mainland)
input interface:
BNC
Support agreement:
HDMI 1.3; HDCP 1.2
Maximum pixel clock:
225MHz
Resolution:
480i/576i/1280*720/60Hz,1920*1080/60Hz
Output interface:
HDMI
Power:
Adapter:DC 5-12V
Temperature:
Operating:-5℃ ~ +70℃
Humidity:
Operating:5% ~ 90%
Size:
81*43*23mm
Warranty:
1 year free warranty
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Dimension (L * W * H):94.5*71*26mm
Gross weight:0.5kg
Port
Shenzhen
Lead Time :
2-3 days for sample,15-25 days for mass product



Description

HD/SD/3G-SDI to HDMI Broadcast converter is a dedicated to SDI high-definition multimedia signal is converted to a HDMI HD equipment.The equipment integrated SDI emitter and HDMI demodulator,Can easily change the SDI signal into HDMI signal,At the same time will SDI with audio signal is transformed into the HDMI signal,In order to realize the sound and image synchronous transmission.

Features

Support the HDMI input format:480i/576i,1280*720/60Hz,1920*1080/60Hz

With 1 loop road SDI signal output

Automatically SDI signal is embedded into the HDMI audio signal solution


Specifications

Parameter

Description

Video



input interface

BNC

Support agreement

HDMI 1.3; HDCP 1.2

Maximum pixel clock

225MHz

Resolution

480i/576i/1280*720/60Hz,1920*1080/60Hz

Output interface

HDMI

output signal types

 HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)

SDI Signal amplitude

0.8Vp-p

SDI impedance

75Ω

SDI Coupling type

AC coupling

SDI Signal jitter (Typical values)

 HD-SDI≤0.2UI 3G-SDI0.4 UI

Other







Maximum input cable length

3G-SDI 120m

note:The transmission distance for different specifications of the cable, test results will be different

Power

Adapter:DC 5-12V

Power dissipation

MAX 2.5W

Temperature

Operating:-5℃ ~ +70

Humidity

Operating:5% ~ 90%

Size

81*43*23mm

Warranty

1 year free warranty

 Panel



Port name

Description

OUTPUT

HDMI signal output

SDI NI/ OUT

SDI signal input/output

DC5-12V

Power adapter socke

LED indicator

Description

STA

Video signal connection indicator

PWR

System power indicator

Installation

1, SDI IN the mouth of the SDI signal source connected to the converter,

2, Connect the SDI OUT and HDMI OUT interface to the display device,

3, Will power converter connected, when the lamp lights up normally, normal operation of system.

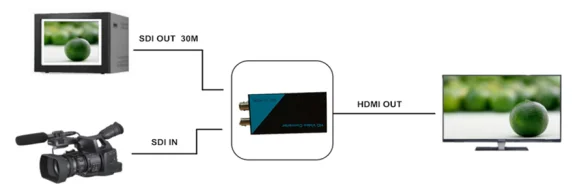

Diagram
