Hot sale wholesale support bidirectional 38KHz IR support 3D ethernet fiber media converter

FOB Reference Price:Get Latest Price
US $30-45 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
PWAY
Model Number:
PW-HT205
Place of Origin:
Guangdong, China (Mainland)
Transmission distance:
45 M
Video Resolution:
1920*1080P@60Hz
Maximum data rate:
6.75 Gbps
Support IR & 3D:
Yes
Support audio format output:
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Video Maximum pixel clock:
165MHz
Power supply:
5 to 90%RH (No Condensation)
Power dissipation:
MAX 3W
Keyword:
Optical network terminal
Function:
UR transmitter and receiver
Supply Ability
Supply Ability:
500 Set/Sets per Week ir transmitter receiver
Packaging & Delivery
Packaging Details
Our IR transmitter receiver Packaging:
Dimension (L * W * H):82*71*25 (mm)
Gross weight:1kg
BoxDimension(L*W*H): 250*220*80(mm)
Port
Shenzhen

Hot sale wholesale support bidirectional 38KHz IR support 3D ethernet fiber media converter

Product Description

Descriptions:

The PW-HT205 extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p and EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

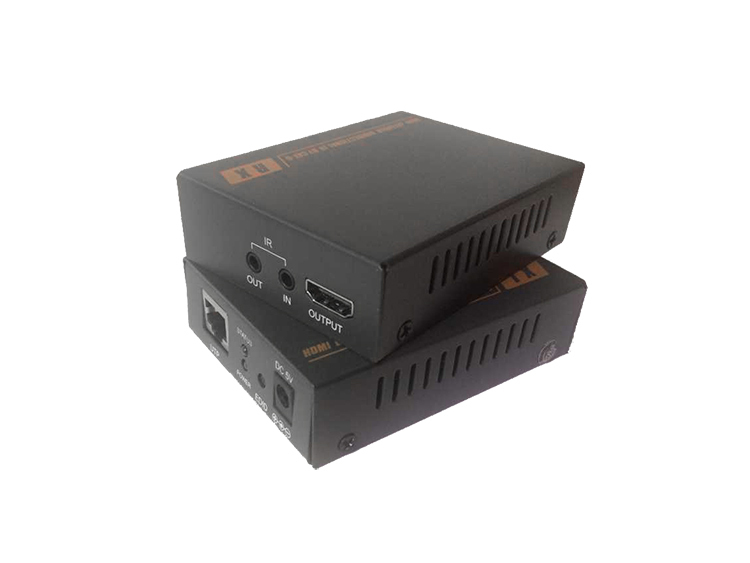

Pictures:

IR transmitter receiver





Features:

  • Transmits HDMI video and audio signals up to 45m over a single CAT6 cable;
  • Support video resolution up to 1920*1080P@60Hz;
  • Support EDID copy function, can match many kinds of display device;
  • Support bidirectional 38KHz IR, support 3D;
  • Transmitter support one channel local output;
  • Compliance with HDMI 1.3 and HDCP 1.2 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play.

Parameter

Description

Video

Standards

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

1920X1080P@60Hz

Connector

HDMI-A

Impedance

100Ω

Ethernet

Interface

RJ45

Transmission distance

CAT6 45m

Other

Power supply

The power adapter: DC 5V/1A

Power dissipation

MAX 3W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

94.5*73*26mm

The warranty

1 year free warranty

Instructions for use

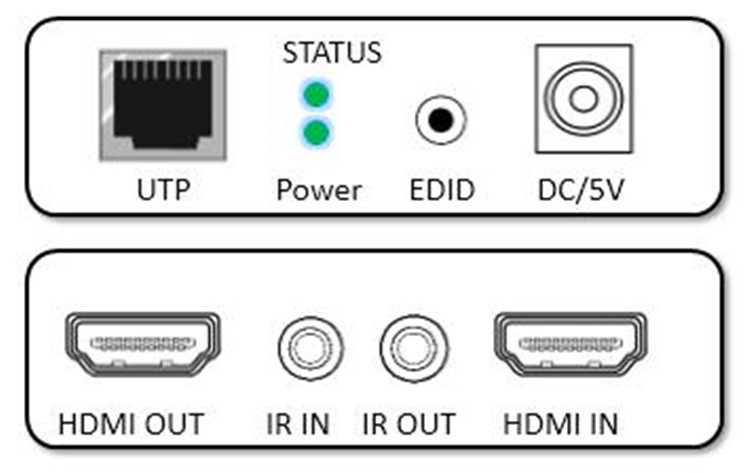

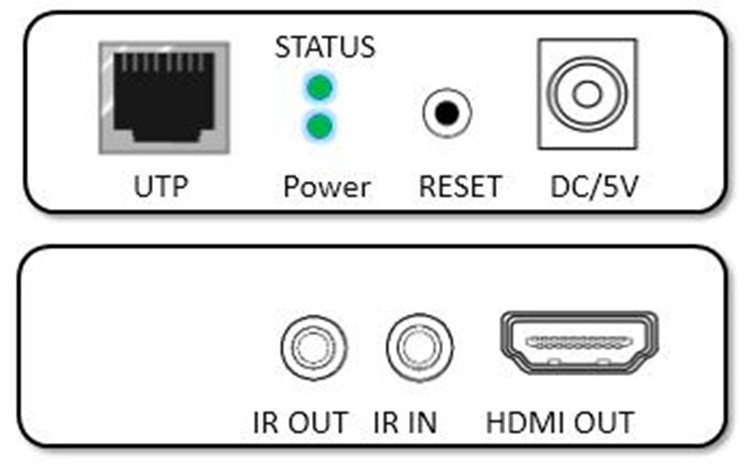

Panel Descriptions:

Transmitter:

IR transmitter receiver

Receiver:

IR transmitter receiver

Installation:

1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,

2.Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
3.Connect the HDMI output port of receiver to the display device with HDMI cable,
4.Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

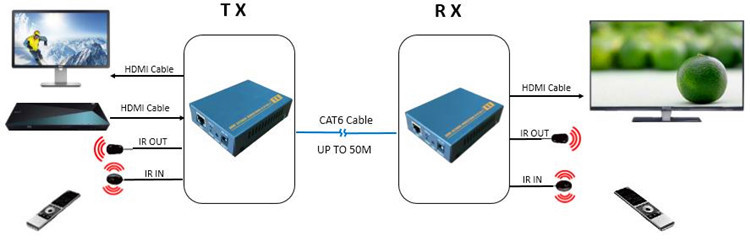

Application Diagram:

IR transmitter receiver

Warranty:

Thank you very much for using our products.

  1. The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
  2. Free maintain won’t be given under the following circumstance:
  • The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration;
  • The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage;
  • The product malfunction caused by not in accordance with the user manual operation;
  • The malfunction and damaged caused by the other barriers(man-made factors or external device);

Any problems in the after-sales service, please contact us directly.



Packing: Gift Carton

package 2.jpg

Related Products
If this product can not meet your demand.Pls click on the image as below to browse more our main products.Hope you can find the one as you want.

IR transmitter receiver

More Fiber Converters:

IR transmitter receiver

Company Information

____________ Factory Advantage ____________

IR transmitter receiver

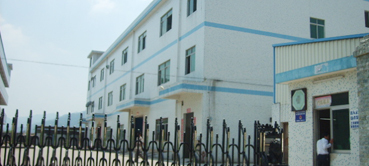

Introduction

Shenzhen Pinwei Technology Co., Ltd.is a company engaged in wireless video production accessories manufacturers, the company is located in Shenzhen Baoan Longhua Sea Star Technology park.

Strong sales team

We have laptop parts export experience more than 10 year.Excellent team and perfect after service make our business is an enjoyment.

IR transmitter receiver
IR transmitter receiver

Production equipment

Maintenance of factory production lines and equipment regular maintenance, make more smooth, the equipment will be worn down to the minimum.

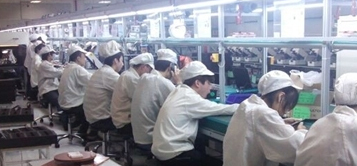

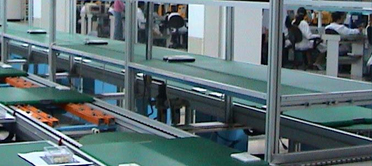

Production line

Professional production lines and improve the process, prompted us to constantly improve the quality of products and delivery efficiency, I will continue to strive to improve in.

IR transmitter receiver
IR transmitter receiver

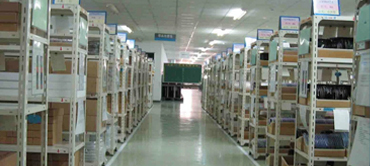

Factory warehouse
